Technical Guide

Concrete stamp mold installation, release and care.

A practical concrete stamping guide for selecting polyurethane stamp mats, preparing the slab, applying release agent, tamping, lifting, cleaning and storage.

Installation Fundamentals

Six steps for a controlled stamped finish.

Use a consistent sequence on every pour. Adjust timing for concrete mix, temperature, wind and site conditions.
Prepare the slab and layout 01

Prepare the slab and layout

Place, screed and float the concrete to a uniform level. Confirm the pattern direction and starting line before stamping.

Professional tipDry-layout the molds beside the slab so the crew understands the rotation and handoff sequence.
Apply release agent evenly 02

Apply release agent evenly

Cover both the concrete surface and mold face with a compatible release system to reduce sticking and surface pull.

Professional tipAvoid heavy pockets of release agent that can soften texture detail or create uneven color.
Place and align the molds 03

Place and align the molds

Set the first row accurately, lock the joints together and keep the pattern square to the project reference line.

Professional tipUse the mold handles and edges for positioning; do not drag the textured face across fresh concrete.
Tamp with consistent pressure 04

Tamp with consistent pressure

Work across the full mold surface using controlled, even force so texture depth remains consistent.

Professional tipStart lightly, inspect the impression and increase pressure only where the concrete can accept it.
Lift cleanly and rotate 05

Lift cleanly and rotate

Release each mold vertically, inspect the impression and move it forward in the planned rotation.

Professional tipKeep enough molds in the set to maintain the working edge without stepping onto freshly stamped areas.
Clean, cure and protect 06

Clean, cure and protect

Complete detailing, follow the selected curing process and clean molds before residue hardens on the surface.

Professional tipStore molds flat and supported after washing to protect shape, handles and texture definition.

Crew Workflow

Organize the pour before the concrete arrives.

Clear roles and a planned mold rotation reduce delays, alignment errors and unnecessary surface repairs.
  1. 1

    Layout lead

    Controls direction, starting line and pattern rotation.

  2. 2

    Mold placement

    Moves, aligns and checks the next working row.

  3. 3

    Tamping & detailing

    Builds uniform relief and corrects joints or edges.

  4. 4

    Release & cleaning

    Maintains release coverage and keeps tools ready.

Field Reference

Recommended operating checklist.

Use these points as a project-start reference. Always follow the concrete, color and release-agent manufacturer's instructions for local conditions.

View Mold Products
Mold material
Flexible polyurethane designed for repeated professional use
Release system
Compatible powder or liquid release agent selected for the project finish
Stamping window
When the slab supports worker weight while still accepting full texture
Core tools
Mold set, tampers, touch-up skins, chisels, hand tools and alignment line

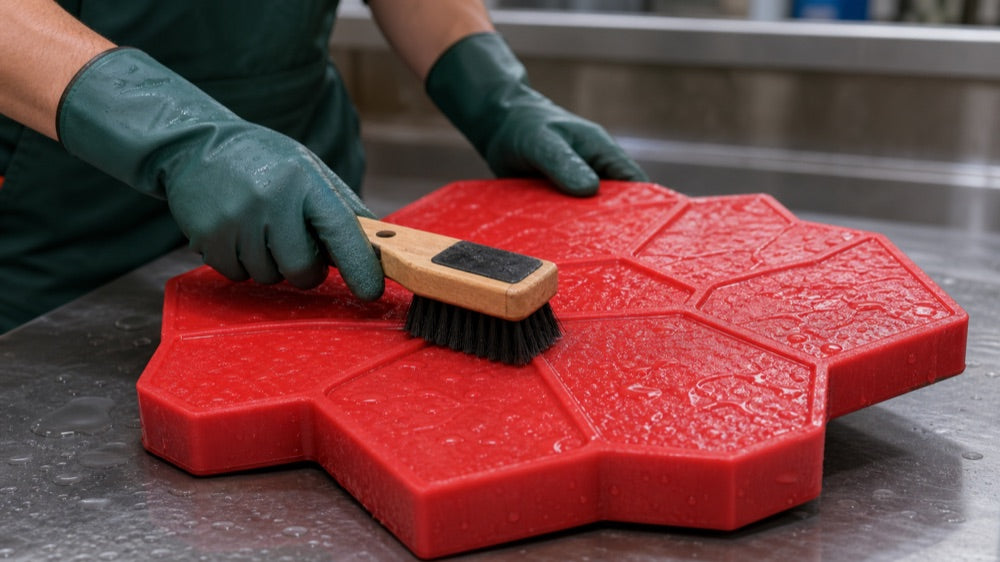

Cleaning
Wash promptly with compatible cleaner; avoid sharp tools and aggressive solvents
Storage
Clean, dry, flat and supported away from heat and direct sunlight

Common Questions

Technical answers before your next pour.

Need a project-specific recommendation? Send photos, surface area and your target finish to our team.

How many molds do I need for one project?

The efficient quantity depends on slab size, crew size and mold dimensions. A working set should cover enough area to maintain the active stamping edge while molds are lifted and rotated.

When is the concrete ready for stamping?

The slab should support the installer's weight without deep sinking while remaining plastic enough to receive full texture. Weather, mix design and slab thickness all affect this window.

How do I prevent molds from sticking?

Use a compatible release agent with even coverage, keep mold faces clean and avoid stamping after the surface has become too wet or too hard.

How should polyurethane molds be stored?

Clean and dry the molds, then store them flat with full support. Keep them away from sharp objects, excessive heat, direct sunlight and loads that can distort the shape.
